STIHL MSA 220 TC-O Chainsaw

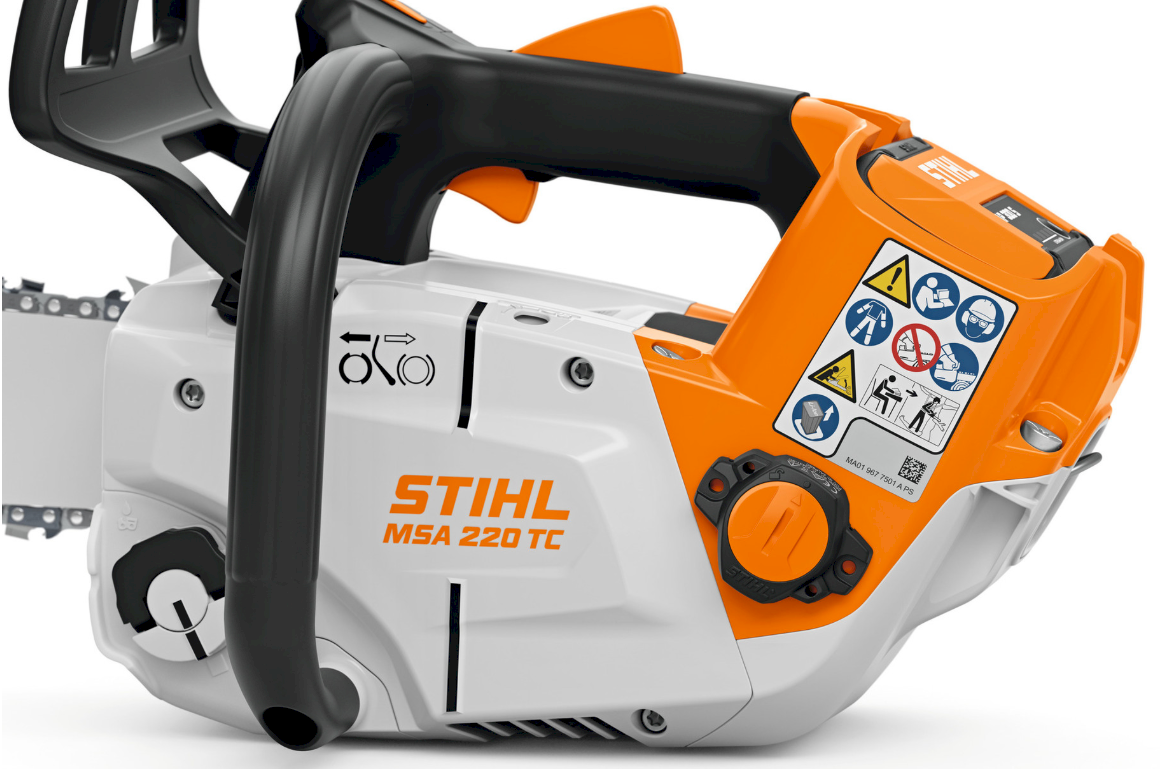

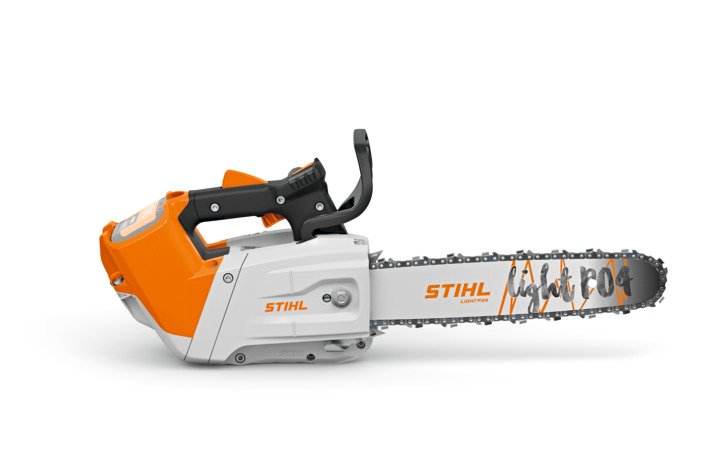

Stihl MSA 220 TC-O Cordless Top-handle Chainsaw – Maximum Power for Professional Arborists
The Stihl MSA 220 TC-O is the most powerful cordless top-handle chainsaw in the Stihl range, designed exclusively for professional arborists. With outstanding cutting performance, it is the perfect tool for removing trunk sections, crown correction, and dead wood.

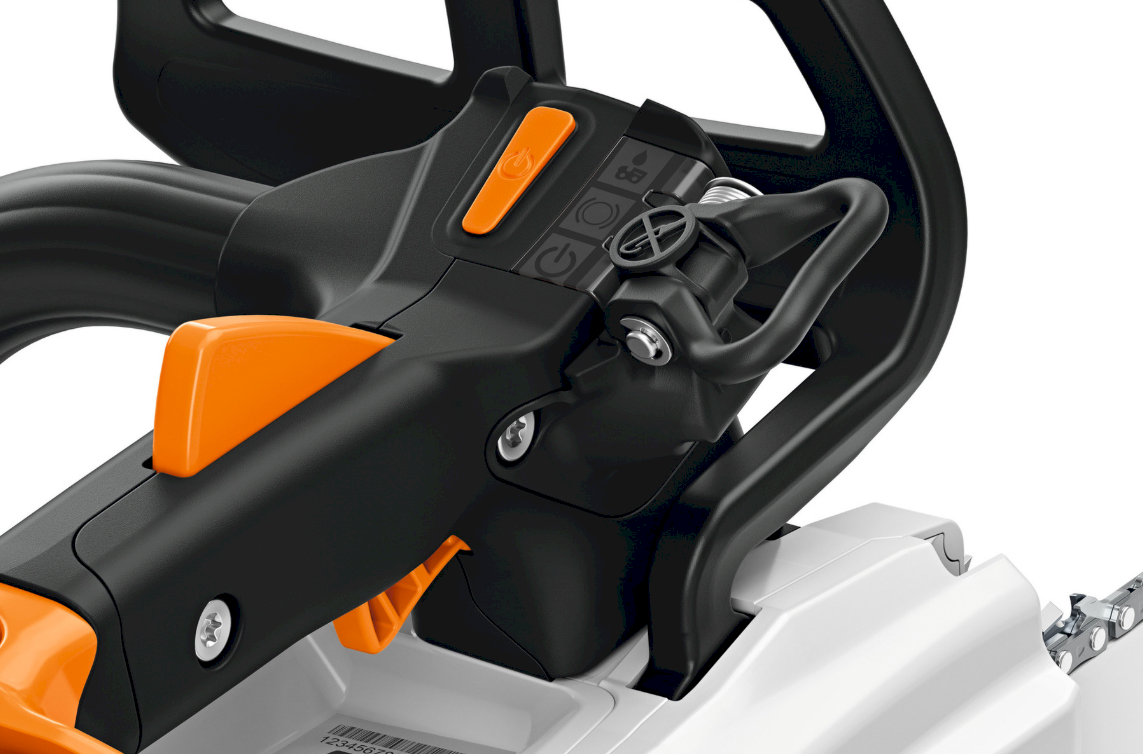

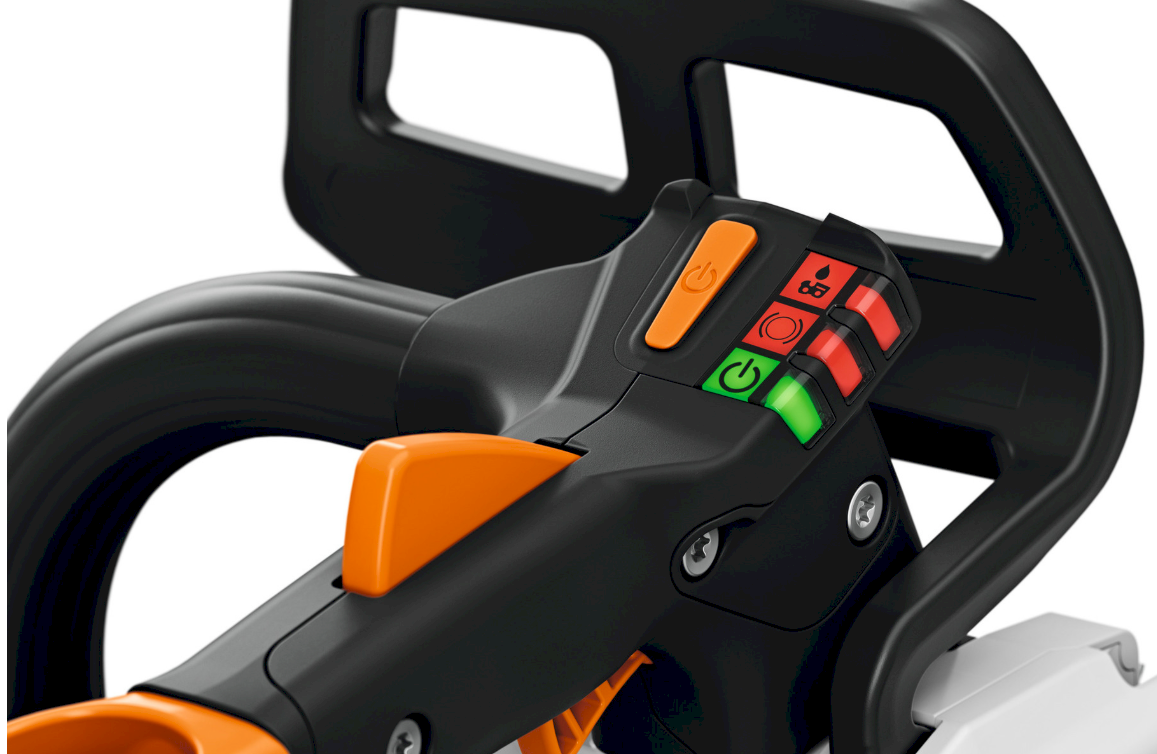

The TC-O version is equipped with advanced features including an oil sensor with LED warning display, ensuring you never run low on chain lubrication. An electronic trigger system with unlock button makes operation simple and secure, while the LED display on the top handle shows operating status and chain brake position at a glance.

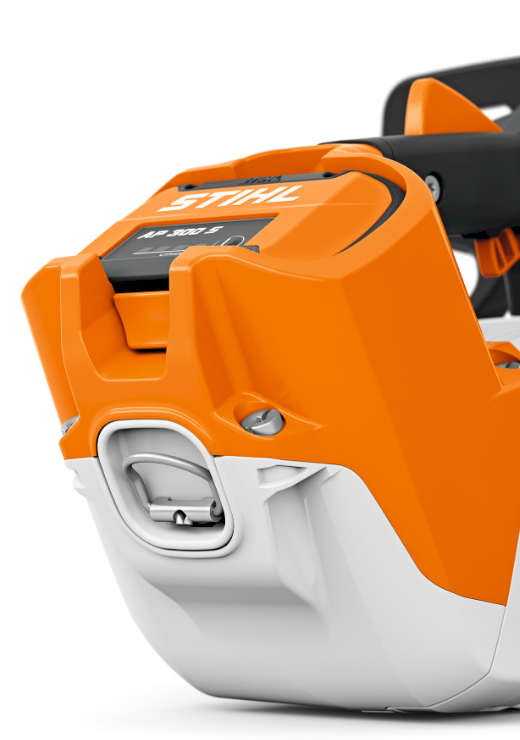

With its excellent power-to-weight ratio, compact size, and balanced design, the MSA 220 TC-O is comfortable to use for long periods. When paired with the AP 300 S battery, it counterbalances the guide bar for improved control and reduced wrist strain.
Built for durability and efficiency, it includes an easy-to-clean air filter, side-mounted chain tensioning, tool-free oil tank cap, and a captive nut on the sprocket cover. The saw comes fitted as standard with a 1.3 mm 3/8” P PS3 saw chain and Light P04 guide bar, delivering exceptional cutting performance.
Like most tools in the AP System, the MSA 220 TC-O is IPX4 rated, allowing use in all weather conditions. With the recommended AP 300 S battery, it provides up to 29 minutes of runtime, while the AP 500 S battery extends runtime to 34 minutes with a trade-off in balance.
- Bar Length: 12" or 14"
-36V
-1.7kw
- 1.1 mm 3/8” P PS3 Pro saw chain
Max. battery working time AP 200 - 16 min
Max. battery working time AP 200 - S 16 min
Max. battery working time AP 300 - 25 min
Max. battery working time AP 300 S - 29 min
Max. battery working time AP 500 S - 34 min
⚠️ Note: This saw is available for purchase by certified arborists only.
- Most powerful Stihl cordless top-handle chainsaw
- Professional arborist tool for pruning, crown work, and trunk sections
- Oil sensor with LED warning display
- Electronic trigger with unlock button for simple operation
- LED display shows status and chain brake position
- Excellent power-to-weight ratio and ergonomic balance
- Runs up to 29 minutes with AP 300 S battery, 34 minutes with AP 500 S
- IPX4 splashwater protection for all-weather use
Technical Details
| Rated voltage | 36 V |
| Power | 1.70 kW 1) |
| Battery system | AP |
| Recommended battery | AP 300 S |
| Device weight without battery | 2.7 kg 2) |
| Device weight without battery | 3.18 / 3.25 kg 3) |
| Bar length | 30 / 35 cm 4) |
| Bar length | 12 / 14 in 4) |
| Saw chain pitch | 3/8"P |
| IPX Rating | IPX4 |
| Max. battery working time AP 200 | 16 min 5) |
| Max. battery working time AP 200 S | 16 min 5) |
| Max. battery working time AP 300 | 25 min 5) |
| Max. battery working time AP 300 S | 29 min 5) |
| Max. battery working time AP 500 S | 34 min 5) |
| Device length with bumper spike | 315 mm 2) |
| Sound pressure level | 94 dB(A) 6) |
| Sound power level | 104 dB(A) 6) |
| Vibration level, left | 3 m/s² 7) |
| Vibration level, right | 3.4 m/s² 7) |
1)Mechanical power as comparative value to petrol appliance Mechanical power as comparative value to petrol appliance2)without guide bar and saw chain without guide bar and saw chain3)with guide bar and saw chain with guide bar and saw chain4)The actual cutting length is shorter than the specified bar length The actual cutting length is shorter than the specified bar length5)The indicated working times per battery charge are indicative and may vary depending on the application and operating mode The indicated working times per battery charge are indicative and may vary depending on the application and operating mode6)K-value according to Directive 2006/42/EC = 2.0 dB(A) K-value according to Directive 2006/42/EC = 2.0 dB(A)7)K-value according to RL 2006/42/EG = 2 m/s² K-value according to RL 2006/42/EG = 2 m/s²
