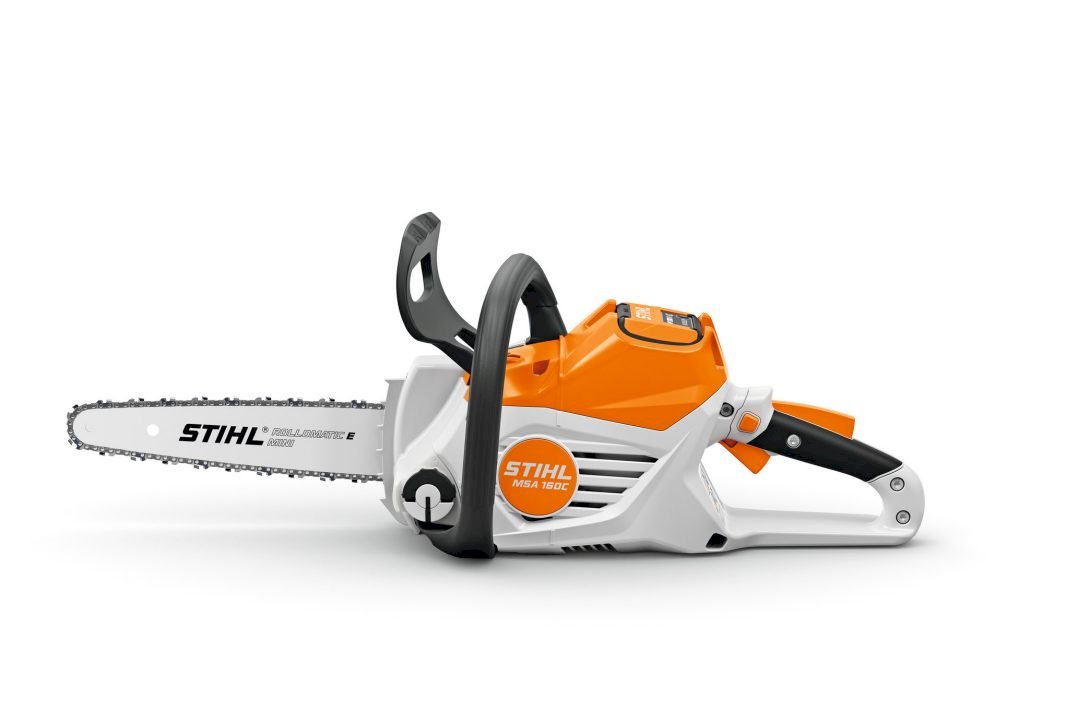

Stihl MSA 160 Cordless Chainsaw
The MSA 160 is a lightweight and powerful battery-powered chainsaw that is designed for small maintenance jobs. It is fitted with a 12” guide bar and has been designed for pruning branches or cutting firewood on your property. It can also be used for processing wood and felling small trees of up to 20 cm in diameter on the worksite. Thanks to the 36 V lithium-ion battery, it’s perfect for work in noise sensitive areas too!
It’s easy and comfortable to use and an ergonomic control handle for greater control and comfort when used across different cutting angles. The trigger system allows for maximum control over the chain speed, and makes working across different materials, around shrubs or on wood working projects even easier. A transparent chain oil tank offers better visibility of oil levels. The quick chain tensioner allows the sprocket cover to be removed and the chain tensioned without the need for additional tools. Plus, the MSA 160 is fitted with a ¼” PM3 saw chain which provides a clean cut and impressive cutting performance.
The MSA 160 is recommend for use with the ALLPRO AP 200 P battery. Working time with the recommended battery is around 39minutes.
Technical details
| Rated voltage | 36 V |
| Max. voltage | 40 V |
| Power | 1.20 kW 1) |
| Battery system | ALLPRO/AP |
| Recommended battery | AP 200.0 P |
| Device weight without battery | 3.1 kg 2) |
| System weight without battery | 3.47 kg 3) |
| Bar length | 30 cm 4) |
| Bar length | 12 in 4) |
| Groove width | 1.10 mm |
| Groove width | 43 in |
| Saw chain pitch | 1/4"P |
| Max. battery working time AP 100.0 P | 26 min 5) |
| Max. battery working time AP 20 | 32 min 5) |
| Max. battery working time AP 200 | 42 min 5) |
| Max. battery working time AP 200 S | 38 min 5) |
| Max. battery working time AP 200.0 P | 39 min 5) |
| Max. battery working time AP 30 | 49 min 5) |
| Max. battery working time AP 30.1 | 49 min 5) |
| Max. battery working time AP 300 | 39 min 5) |
| Max. battery working time AP 300 S | 48 min 5) |
| Max. battery working time AP 300.0 P | 58 min 5) |
| Max. battery working time AP 500 S | 58 min 5) |
| Max. cuts per battery charge AP 200 S | 210 pcs 6) |
| Max. cuts per battery charge AP 300 S | 310 pcs 6) |
| Max. cuts per battery charge AP 500 S | 370 pcs 6) |
| Device length with bumper spike | 435 mm 2) |
| Sound pressure level | 85 dB(A) 7) |
| Sound power level | 93 dB(A) 7) |
| Vibration level left | 4.6 m/s² 8) |
| Vibration level right | 3.9 m/s² 8) |
