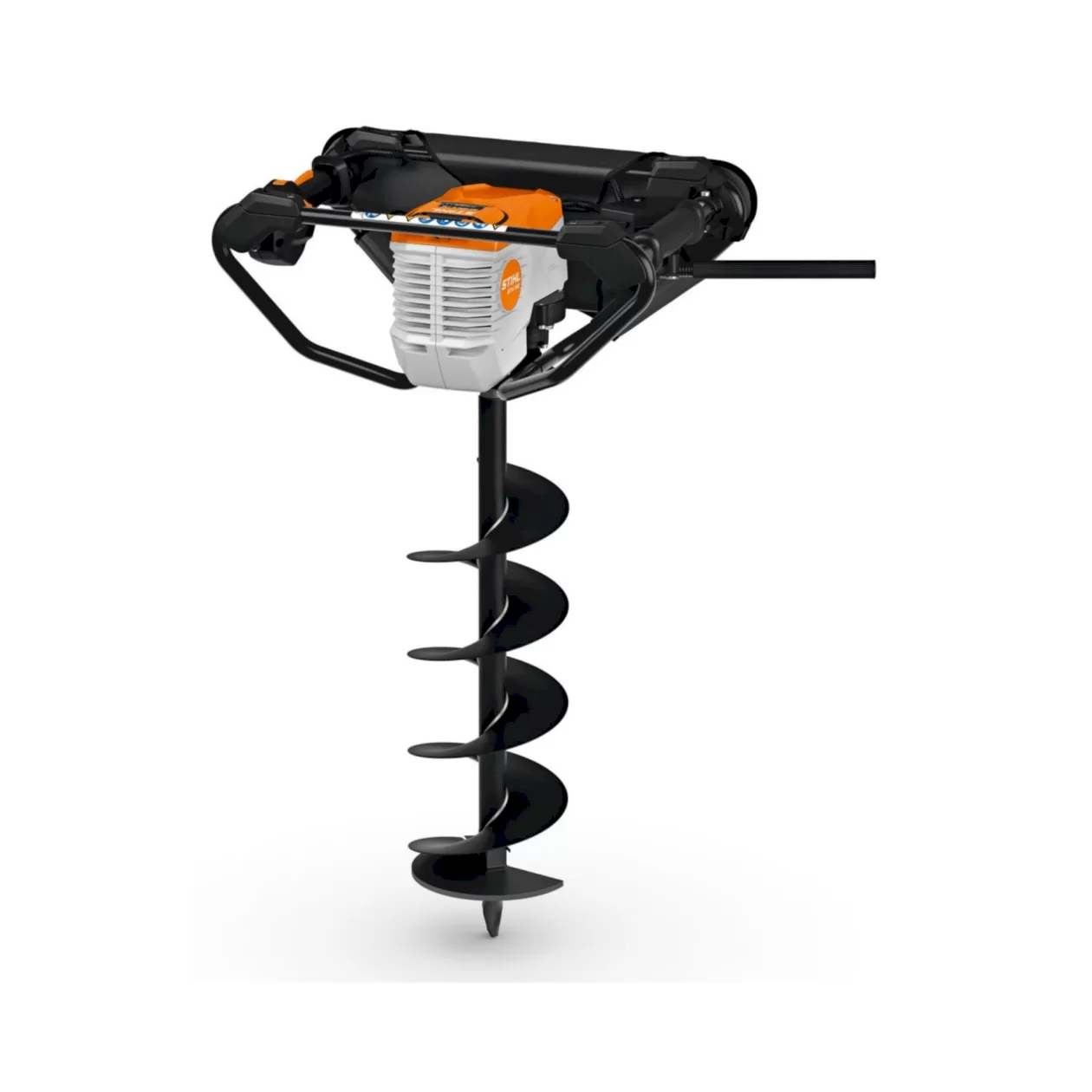

STIHL BTA 140 Cordless Earth Auger

The STIHL BTA 140 Cordless Earth Auger is a professional battery-powered earth auger designed for demanding users in horticulture, landscaping, forestry, agriculture and construction. Part of the STIHL AP System, this cordless auger can drill holes up to 300mm in diameter, making it suitable for fence posts, planting holes, drainage shafts and small to medium-sized foundation work.

Please note: the STIHL BTA 140 is supplied as a tool only. Battery, charger and drill bits are not included. If you do not already own a compatible STIHL AP battery and charger, these will need to be purchased separately. The BTA 140 works with existing STIHL drill accessories from 40mm to 300mm, allowing you to choose the correct auger bit for the ground conditions and hole size required.

Powered by a high-performance EC motor, the BTA 140 delivers smooth, low-vibration drilling with consistent power throughout the battery charge. With the recommended STIHL AP 300 S battery, it can drill approximately 230 holes using a 90mm auger attachment or around 150 holes using a 150mm auger attachment.

Key Features

• Professional STIHL cordless earth auger for landscaping, forestry, agriculture and construction
• Part of the STIHL AP Battery System for professional cordless machinery users
• Tool only: supplied without battery, charger or drill bits
• Suitable for drill accessories from 40mm to 300mm
• Capable of drilling holes up to 300mm in diameter
• High-performance EC motor for efficient, low-maintenance operation
• Three operating modes: slow gear, fast gear and reverse gear
• Slow gear: 0-170 rpm for controlled, low-kickback drilling
• Fast gear: 0-230 rpm for tougher ground conditions
• Reverse gear: 0-35 rpm to help release jammed drill bits
• STIHL QuickStop system detects twisting and stops the drilling process
• Large support cushion helps guide the auger smoothly and precisely
• Close-to-body drilling axis supports ergonomic one-person operation
• Integrated display shows the selected operating mode clearly
• IPX4 splashwater protection for reliable use in rainy conditions
• Compatible with STIHL Smart Connector 2 A for connected tool data

Typical Applications

The STIHL BTA 140 is designed for professional hole drilling in soil and mixed ground conditions. It is ideal for driving fence posts, creating planting holes, drilling drainage shafts and preparing small to medium-sized foundations. The 40mm to 300mm drill accessory compatibility makes it flexible for landscaping, fencing, horticulture, forestry and construction work.

Operating Modes

The STIHL BTA 140 has three operating modes controlled from the handle. Slow gear runs from 0-170 rpm for controlled, low-kickback drilling. Fast gear runs from 0-230 rpm for tougher ground conditions. Reverse gear runs from 0-35 rpm and helps free jammed drill bits when roots or stones cause the auger to lock.

Safety & Control Features

The STIHL QuickStop system automatically interrupts the drilling process when twisting is detected, helping protect the user and the tool if the auger becomes blocked. The large support cushion rests comfortably against the body, allowing controlled guidance, while the close-to-body drilling axis supports a balanced working position for one-person operation.

Battery Performance

With the recommended STIHL AP 300 S battery, the BTA 140 can drill approximately 230 holes using a 90mm auger attachment or around 150 holes using a 150mm auger attachment. STIHL Constant Power electronics help maintain consistent output throughout the battery charge, so performance does not noticeably drop as the battery discharges.

IPX4 Splashwater Protection Explained

The BTA 140 is IPX4 certified, which means it is designed to resist splashwater from all sides. In practical terms, this allows the cordless earth auger to be used reliably in rainy working conditions, making it suitable for daily professional outdoor use when the weather is changeable.

Why Choose the STIHL BTA 140?

The STIHL BTA 140 is a strong choice for professionals who want a quieter, lower-vibration alternative to petrol earth augers without giving up demanding site performance. Its AP System battery platform, 300mm drilling capacity, three-mode gearbox, QuickStop safety system and reverse gear make it especially useful for landscapers, fencing contractors, estate teams and construction users who need controlled drilling across varied ground conditions.
