Hyundai DHY18COM-1 230v 18kW / 22kVA 1500rpm Single Phase Diesel Generator
The Hyundai DHY18COM-1 diesel generator is a compact yet powerful single phase standby and prime power generator, producing up to 22kVA / 18kW backup output. Built with a slow-running 1500rpm water-cooled Hyundai diesel engine and a robust AVR alternator, it delivers clean, stable power that’s safe for sensitive electronics. Compact in size but heavy-duty in performance, it’s ideal for homes, businesses, workshops, and farms that need reliable electricity at all times.
Key Features
- Strong Output: Produces 22kVA / 18kW backup power and 20kVA / 16kW prime power.

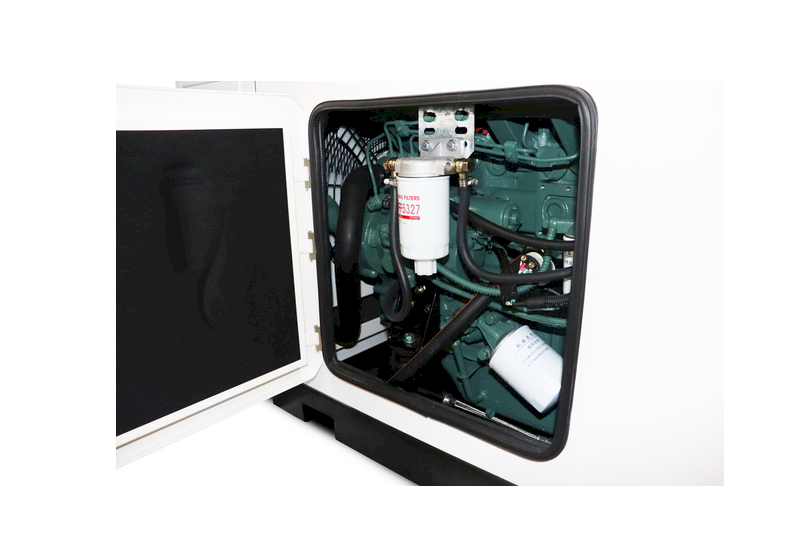

- Hyundai Diesel Engine: 4-stroke, 4-cylinder, water-cooled Hyundai 4DW91-29D engine.
- 1500rpm Design: Slower running for reduced wear and longer lifespan compared to 3000rpm models.
- Compact Build: Smaller footprint than most 18kW 1500rpm generators, perfect for limited spaces.
- AVR Alternator: Provides stable power for sensitive equipment such as laptops, TVs, and servers.
- ATS Compatible: Works with an Automatic Transfer Switch (sold separately) for automatic power switching.

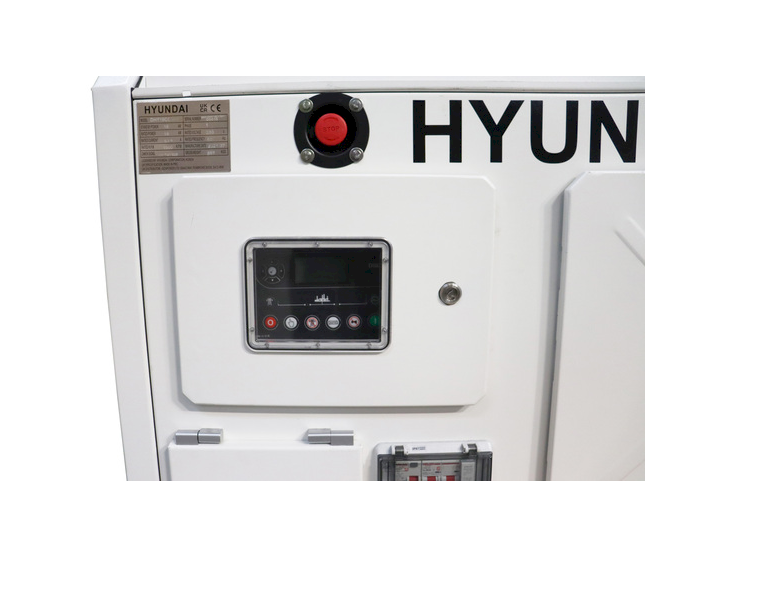

- DSE Control Panel: Deep Sea Electronics DSE6120 MKIII panel with LCD display for clear monitoring.
- Safety Features: Low oil pressure, high water temperature, voltage/frequency regulation, and emergency stop.
- Fuel Efficient: Runs on diesel or cost-effective green diesel for lower refuelling costs.
- Peace of Mind: Backed by a 12-month Hyundai warranty with full Irish support.
Why Choose the Hyundai DHY18COM-1 Generator?
The Hyundai DHY18COM-1 22kVA diesel generator is designed for serious standby and prime power needs. Unlike 3000rpm generators, its 1500rpm slow-running water-cooled engine ensures durability, reliability, and extended service life, making it a smart choice if you rely on your generator daily.
With its AVR alternator, the DHY18COM-1 produces smooth, clean power suitable for sensitive electronics, while the DSE6120 control panel provides advanced monitoring and protection. Compact yet powerful, this generator is the perfect long-term solution for ensuring uninterrupted power at your home, business, or agricultural premises.
Technical Specifications
Model | DHY18COM-1 |
| Max/Standby kVA* | 20 |
| Max/Standby kW | 16 |
| Rated/Prime kVA* | 22 |
| Rated/Prime kW | 18 |
Phase | Single |
Voltage | 230 |
Connection Method(s) | Busbar |
Rated Speed (RPM) | 1500 |
Frequency (Hz) | 50 |
Max/Continuous Current (Amps) | 69.6 |
Power Factor (Cosφ) | 1 |
Fuel Type | Diesel |
Fuel Tank (Litres) | 40 |
Runtime (Hours) @ 100% Load | 10 |
Noise Level @ 1m 75% load (dB) | 79.5 |
Noise Level @ 7m 75% load (dB) | 70 |
Hyundai Diesel Engine Model | 4DW91-29D |
Power Output (kw) | 16 |
Displacement (CC) | 1809 |
No. of Cylinders | 4 |
Displacement (Litres) | 1.809 |
Recommended Oil Type | SAE 15W40 |
Oil Capacity (Litres) | 8 |
Oil Filter Part No. | 1012015AB01-0000 |
Aspiration | Natural |
Fuel Regulation/Governor System | Electronic |
Fuel Consumption (100% Load) [Litres] | 4.94 |
Fuel Filter Part No. | 1117010-B01-0000B |
Cooling | Water |
Alternator Model | GP184E |
Breakers | Delixi 125A |
Alternator Type | Brushless |
Voltage Regulation | AVR |
Air Filter Part No. | DHP-0029-04 |
Net Weight (kg) | 520 |
Gross Weight (kg) | 597 |
Dimensions L x W x H (mm) | 1600 x 740 x 825 |
Battery (Ah) | 1x12V-60Ah |
ATS / MTS Compatible | Yes |
Control Panel | DSE 6120 MKIII |
Model EAN | 5059608212549 |
Warranty | 1 Year / 1000 Hours |
